Wafer

01 IGBT

Semiconductor Foundry
MR series IGBT low
current range

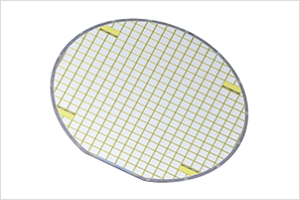

Semiconductor Foundry
MR series IGBT middle
current range
Semiconductor Foundry
M1 series IGBT middle
current range

MR series IGBT low current range (650V/12A ~ 650V/35A)

MR series IGBT low current range (650V/12A ~ 650V/35A)
Package Parts Associated Data Gate-Emitter voltage
VSES
[V]		 Collector current IC
[A]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
Typical limit
[V]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
upper limit
[V]		 Gate Voltage
VGES
[V]		 Gate-Emitter threshold voltage
VGE(th)
lower limit
[V]		 Gate-Emitter threshold voltage
VGE(th)
upper limit
[V]		 Die size
X
[mm]		 Die size
Y
[mm]		 Junction temperature
Tj
[deg.C]
MMJ6512B00xx package
 MMJ6512B00xx PDF product catalog 650 12 1.65 1.95 -30 to 30 4.00 6.00 2.70 2.70 -40 to 150
MMJ6515B00xx package
 MMJ6515B00xx PDF product catalog 650 15 1.65 1.95 -30 to 30 4.00 6.00 2.90 2.90 -40 to 150
MMJ6525B00xx package
 MMJ6525B00xx PDF product catalog 650 25 1.60 1.90 -30 to 30 4.00 6.00 3.38 3.38 -40 to 150
MMJ6530C00xx package
 MMJ6530C00xx PDF product catalog 650 30 1.80 2.10 -30 to 30 4.50 6.50 3.60 3.60 -40 to 150
MMJ6535C00xx package
 MMJ6535C00xx PDF product catalog 650 35 1.85 2.15 -30 to 30 4.50 6.50 3.77 3.77 -40 to 150

MR series IGBT middle current range (650V/100A~1250V/200A)

MR series IGBT middle current range (650V/100A~1250V/200A)
Package Parts Associated Data Gate-Emitter voltage
VSES
[V]		 Collector current IC
[A]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
Typical limit
[V]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25deg C
upper limit
[V]		 Gate Voltage
VGES
[V]		 Gate-Emitter threshold voltage
VGE(th)
lower limit
[V]		 Gate-Emitter threshold voltage
VGE(th)
upper limit
[V]		 Die size
X
[mm]		 Die size
Y
[mm]		 Junction temperature
Tj
[deg.C]
MMJ65A0A00xx package
 MMJ65A0A00xx PDF product catalog 650 100 1.50 1.80 -30 to 30 5.00 6.80 7.80 7.80 -40 to 175
MMJ65A5A00xx package
 MMJ65A5A00xx PDF product catalog 650 150 1.50 1.80 -30 to 30 5.00 6.80 9.30 9.30 -40 to 175
MMJ65B0A00xx package
 MMJ65B0A00xx PDF product catalog 650 200 1.50 1.80 -30 to 30 5.00 6.80 10.60 10.60 -40 to 175
MMJ65A0A02xx package
 MMJ65A0A02xx PDF product catalog 650 100 1.30 1.60 -30 to 30 5.00 6.80 7.80 7.80 -40 to 175
MMJ65A5A02xx package
 MMJ65A5A02xx PDF product catalog 650 150 1.30 1.60 -30 to 30 5.00 6.80 9.30 9.30 -40 to 175
MMJ65B0A02xx package
 MMJ65B0A02xx PDF product catalog 650 200 1.30 1.60 -30 to 30 5.00 6.80 10.60 10.60 -40 to 175
MMJC575A01xx package
 MMJC575A01xx PDF product catalog 1250 75 1.85 2.15 -30 to 30 5.00 6.80 7.90 7.90 -40 to 175
MMJC5A0A01xx package
 MMJC5A0A01xx PDF product catalog 1250 100 1.85 2.15 -30 to 30 5.00 6.80 8.80 8.80 -40 to 175
MMJC5A5A01xx package
 MMJC5A5A01xx PDF product catalog 1250 150 1.85 2.15 -30 to 30 5.00 6.80 10.50 10.50 -40 to 175
MMJC5B0A01xx package
 MMJC5B0A01xx PDF product catalog 1250 200 1.85 2.15 -30 to 30 5.00 6.80 11.90 11.90 -40 to 175

MI series IGBT middle current range (650V/45A~1250V/200A)

MI series IGBT middle current range (650V/45A~1250V/200A)
Package Parts Associated Data Gate-Emitter voltage
VSES
[V]		 Collector current IC
[A]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25°C
Typical limit
[V]		 Collector-Emitter saturation voltage
VCE(sat) @Tj=25°C
Upper limit
[V]		 Gate Voltage
VGES
[V]		 Gate-Emitter threshold voltage
VGE(th)
lower limit
[V]		 Gate-Emitter threshold voltage
VGE(th)
upper limit
[V]		 Internal gate rasistor
Rgint
typical limit
[Ω]		 Die size
X
[mm]		 Die size
Y
[mm]		 Junction temperature
Tj
[deg.C]
MMJ6545F00xx package
 MMJ6545F00xx PDF product catalog 650 45 1.55 1.85 -30 to 30 5.20 6.60 - 4.98 4.98 -40 to 175
MMJ6545G00xx package
 MMJ6545G00xx PDF product catalog 650 45 2.00 2.35 -30 to 30 5.20 6.60 - 4.98 4.98 -40 to 175
MMJ6575F00xx package
 MMJ6575F00xx PDF product catalog 650 75 1.55 1.85 -30 to 30 5.20 6.60 1.7 6.60 5.90 -40 to 175
MMJ65A0F00xx package
 MMJ65A0F00xx PDF product catalog 650 100 1.45 1.75 -30 to 30 5.20 6.60 1.7 6.00 9.00 -40 to 175
MMJ65A5F00xx package
 MMJ65A5F00xx PDF product catalog 650 150 1.45 1.75 -30 to 30 5.20 6.60 1.7 7.90 9.70 -40 to 175
MMJ65B0F00xx package
 MMJ65B0F00xx PDF product catalog 650 200 1.45 1.75 -30 to 30 5.20 6.60 1.7 10.20 9.70 -40 to 175
MMJ6575G00xx package
 MMJ6575G00xx PDF product catalog 650 75 2.00 2.35 -30 to 30 5.20 6.60 1.7 6.60 5.90 -40 to 175
MMJ65A0G00xx package
 MMJ65A0G00xx PDF product catalog 650 100 1.9 2.25 -30 to 30 5.20 6.60 1.7 9.00 6.00 -40 to 175
MMJ65A5G00xx package
 MMJ65A5G00xx PDF product catalog 650 150 1.9 2.25 -30 to 30 5.20 6.60 1.7 7.90 9.70 -40 to 175
MMJ65B0G00xx package
 MMJ65B0G00xx PDF product catalog 650 200 1.9 2.25 -30 to 30 5.20 6.60 1.7 10.20 9.70 -40 to 175
MMJ75B8F00xx package
 MMJ75B8F00xx PDF product catalog 750 275 1.3 1.6 -30 to 30 5.10 6.50 1.7 10.60 10.60 -40 to 175
MMJC550F00xx package
 MMJC550F00xx PDF product catalog 1250 50 1.65 1.95 -30 to 30 5.00 6.80 4.0 7.18 6.80 -40 to 175
MMJC575F00xx package
 MMJC575F00xx PDF product catalog 1250 75 1.65 1.95 -30 to 30 5.00 6.80 10.0 9.00 7.80 -40 to 175
MMJC5A0F00xx package
 MMJC5A0F00xx PDF product catalog 1250 100 1.65 1.95 -30 to 30 5.00 6.80 7.5 10.26 9.60 -40 to 175
MMJC5A5F00xx package
 MMJC5A5F00xx PDF product catalog 1250 150 1.65 1.95 -30 to 30 5.00 6.80 5.0 12.36 11.40 -40 to 175
MMJC5B0F00xx package
 MMJC5B0F00xx PDF product catalog 1250 200 1.65 1.95 -30 to 30 5.00 6.80 3.3 16.00 12.00 -40 to 175
MMJC050G00xx package
 MMJC050G00xx PDF product catalog 1250 50 1.95 2.3 -30 to 30 5.20 6.60 4.0 7.18 6.80 -40 to 175
MMJC075G00xx package
 MMJC075G00xx PDF product catalog 1200 75 1.95 2.3 -30 to 30 5.20 6.60 10.0 9.00 7.80 -40 to 175
MMJC0A0G00xx package
 MMJC0A0G00xx PDF product catalog 1200 100 1.95 2.3 -30 to 30 5.20 6.60 7.5 10.26 9.60 -40 to 175
MMJC0A5G00xx package
 MMJC0A5G00xx PDF product catalog 1200 150 1.95 2.3 -30 to 30 5.20 6.60 5.0 12.36 11.40 -40 to 175
MMJC0B0G00xx package
 MMJC0B0G00xx PDF product catalog 1200 200 1.95 2.05 -30 to 30 5.20 6.60 3.3 16.00 12.00 -40 to 175
MMJC050J00xx package
 MMJC050J00xx PDF product catalog 1200 50 1.7 2.05 -30 to 30 5.20 6.60 4.0 6.80 7.18 -40 to 175
MMJC075J00xx package
 MMJC075J00xx PDF product catalog 1200 75 1.7 2.05 -30 to 30 5.20 6.60 10.0 9.00 7.80 -40 to 175
MMJC0A0J00xx package
 MMJC0A0J00xx PDF product catalog 1200 100 1.7 2.05 -30 to 30 5.20 6.60 7.5 10.26 9.60 -40 to 175
MMJC0A5J00xx package
 MMJC0A5J00xx PDF product catalog 1200 150 1.7 2.05 -30 to 30 5.20 6.60 5.0 12.36 11.40 -40 to 175
MMJC0B0J00xx package
 MMJC0B0J00xx PDF product catalog 1200 200 1.7 2.05 -30 to 30 5.20 6.60 3.3 16.00 12.00 -40 to 175

02 FRD

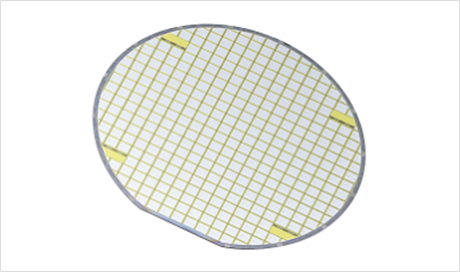

MR series FRD
MR series FRD
MI series FRD
MI series FRD

MR Series FRD (650V/100A～1250V/200A)

MR Series FRD (650V/100A～1250V/200A)
Package Parts Associated Data Reverse voltage
VRR
[V]		 Forward current
IF
[A]		 Forward voltage
VF
typical limit
[V]		 Forward voltage
VF
upper limit
[V]		 Die size
X
[mm]		 Die size
Y
[mm]		 Junction temperature
Tj
[deg.C]
MMK65A0A00xx package
 MMK65A0A00xx PDF product catalog 650 100 1.70 2.20 5.00 5.00 -40 to 175
MMK65A5A00xx package
 MMK65A5A00xx PDF product catalog 650 150 1.70 2.20 6.00 6.00 -40 to 175
MMK65B0A00xx package
 MMK65B0A00xx PDF product catalog 650 200 1.70 2.20 7.00 7.00 -40 to 175
MMKC575A00xx package
 MMKC575A00xx PDF product catalog 1250 75 2.10 2.60 5.80 5.80 -40 to 175
MMKC5A0A00xx package
 MMKC5A0A00xx PDF product catalog 1250 100 2.10 2.60 6.80 6.80 -40 to 175
MMKC5A5A00xx package
 MMKC5A5A00xx PDF product catalog 1250 150 2.10 2.60 8.20 8.20 -40 to 175
MMKC5B0A00xx package
 MMKC5B0A00xx PDF product catalog 1250 200 2.10 2.60 9.30 9.30 -40 to 175

MI Series FRD (650V/75A~1250V/200A)

MI Series FRD (650V/75A~1250V/200A)
Package Parts Associated Data Reverse voltage
VRR
[V]		 Forward current
IF
[A]		 Forward voltage
VF
typical limit
[V]		 Forward voltage
VF
upper limit
[V]		 Die size
X
[mm]		 Die size
Y
[mm]		 Junction temperature
Tj
[deg.C]
MMK6575F00xx package
 MMK6575F00xx PDF product catalog 650 75 1.45 1.85 5.40 3.80 -40 to 175
MMK65A0F00xx package
 MMK65A0F00xx PDF product catalog 650 100 1.45 1.85 7.00 3.80 -40 to 175
MMK65A5F00xx package
 MMK65A5F00xx PDF product catalog 650 150 1.45 1.85 7.80 4.90 -40 to 175
MMK65B0F00xx package
 MMK65B0F00xx PDF product catalog 650 200 1.45 1.85 9.70 5.20 -40 to 175
MMK75B8F00xx package
 MMK75B8F00xx PDF product catalog 750 275 1.70 2.10 9.20 5.40 -40 to 175
MMKC550F00xx package
 MMKC550F00xx PDF product catalog 1250 50 1.70 2.10 6.30 4.50 -40 to 175
MMKC575F00xx package
 MMKC575F00xx PDF product catalog 1250 75 1.70 2.10 7.30 5.40 -40 to 175
MMKC5A0F00xx package
 MMKC5A0F00xx PDF product catalog 1250 100 1.70 2.10 8.40 6.10 -40 to 175
MMKC5A5F00xx package
 MMKC5A5F00xx PDF product catalog 1250 150 1.70 2.10 10.80 6.80 -40 to 175
MMKC5B0F00xx package
 MMKC5B0F00xx PDF product catalog 1250 200 1.70 2.10 14.20 6.70 -40 to 175
MMKC5B0FA0xx package
 MMKC5B0FA0xx PDF product catalog 1250 200 1.70 2.10 12.10 8.70 -40 to 175
